Speed Limiter in Malaysia: JPJ-Approved SLD Supply & Installation

Get Free SLD Quote → Call +60 16 673 7114

Response within 24 hours  ·  JPJ-authorized installer

What Is the JPJ Speed Limiter Mandate?

The JPJ Speed Limiter Mandate requires eligible commercial vehicles in Malaysia to be fitted with a JPJ-approved speed limiter device (SLD). A compliant speed limiter device in Malaysia must be permanently installed, tamper-resistant, and operational at all times.

The mandate applies to both newly registered and existing commercial vehicles. During JPJ and Puspakom inspections, vehicles must present valid SLD verification documentation to demonstrate compliance.

Vehicles Covered Under JPJ Speed Limiter Regulations

JPJ speed limiter regulations apply to:

  • Heavy Goods Vehicles (HGVs) with Gross Vehicle Weight above 3,500 kg
  • Express and tour buses above 5,000 kg GVW carrying more than 8 passengers
  • Passenger vehicles carrying more than 8 passengers with Gross Vehicle Weight above 5,000 kg

The SLD caps speed at 90 km/h, with a driver warning typically around 85 km/h. Other body types (mini-buses, school buses, panel vans, tankers, tippers) are in scope only if they meet the GVW and passenger thresholds above. The device must keep working, and its verification slip and report are renewed every two years.

Vehicle Compatibility & Brand Coverage

Our JPJ-approved Speed Limitation Device is engineered to integrate cleanly with the full range of commercial vehicle brands and body types operating on Malaysian roads. Whether you run a single lorry or a mixed fleet, the same certified device works across models with minimal adjustment.

Supported Truck & Prime Mover Brands

  • Hino: 300 Series, 500 Series, 700 Series (rigid and prime mover configurations)
  • Isuzu: N Series, F Series, Giga, Elf light/medium duty
  • Mitsubishi Fuso: Canter, Fighter, Super Great
  • Scania, Volvo, MAN, DAF: European heavy prime movers used in Malaysian logistics
  • Foton, JAC, Sinotruk: Chinese-built rigid trucks and tippers
  • UD Trucks / Nissan Diesel: legacy fleet units

Supported Vehicle Body Types

  • Rigid lorries above 3,500 kg GVW (in scope under JPJ rules)
  • Prime movers and long-haul semi-trailers
  • Express and tour buses that meet the 5,000 kg GVW and more-than-8-passenger test (90 km/h cap)
  • Mini-buses and school buses, where they meet the same passenger and GVW thresholds
  • Panel vans used for commercial haulage, where GVW is above 3,500 kg
  • Tanker vehicles (fuel, chemical, water) above the goods-vehicle threshold
  • Tipper and construction dump trucks above the goods-vehicle threshold

For any brand or model not listed above, our technical team can perform a pre-installation compatibility check within 48 hours.

Bulk & Fleet SLD Orders

Larger transport operators can benefit from dedicated fleet pricing tiers, scheduled installation windows, and included operator training. Our fleet program is designed for logistics companies, express bus operators, oil & gas contractors, and construction fleets managing 10 or more compliant vehicles.

What's Included in a Fleet Order

  • Volume-based device pricing (tiers at 10+, 50+, and 100+ units)
  • On-site installation at your yard or depot, so no vehicle downtime is lost to workshop travel
  • Fleet-wide calibration and JPJ-compliant certification report per vehicle
  • Bulk operator and driver training sessions included at no extra cost
  • Dedicated account manager and priority after-sales support
  • Consolidated invoicing and warranty documentation for your compliance team

Fleet enquiries typically receive a formal quote within 24 hours of your first contact.

JPJ SLD Enforcement Timeline & 2026 Postponement

JPJ and the Ministry of Transport (MOT) are bringing in the Speed Limitation Device (SLD) requirement in three phases. Phases 1 and 2 are in force. Phase 3 is postponed, and JPJ has said the new date will be announced later.

Phase 1: 1 October 2025

Verification of SLD functionality for vehicles built from 1 January 2015, in the JPJ-listed classes: goods vehicles above 3,500 kg GVW, and tour or express buses above 5,000 kg GVW carrying more than 8 passengers.

Phase 2: 1 January 2026

Activation of the built-in SLD function in the ECU for goods vehicles above 3,500 kg GVW and passenger vehicles above 5,000 kg GVW carrying more than 8 passengers, where the vehicle was built before 1 January 2015 and the ECU supports SLD.

Phase 3: Originally 1 July 2026 (Postponed)

Retrofit installation of an approved SLD on commercial vehicles that do not have one. Enforcement is deferred until JPJ sets a new date. Limiters fitted in 2026 may still qualify for the Accelerated Capital Allowance, which runs until 31 December 2026.

The postponement covers Phase 3 retrofit only. Phase 1 and Phase 2 remain in force at JPJ roadside checks and PUSPAKOM inspections. JPJ can still issue a Notis Siasatan under Section 114 for a missing or non-working device.

JPJ Inspection, Verification & Compliance Requirements

To meet JPJ compliance standards, vehicles must:

  • Be fitted with a JPJ-approved Speed Limitation Device
  • Keep the device functional and tamper-resistant at all times
  • Carry valid SLD verification documentation, namely the Slip Pengesahan Kefungsian SLD and Laporan Kefungsian SLD, during Puspakom and JPJ inspections

You need the same slip and report when you renew a commercial vehicle permit with APAD in Peninsular Malaysia, or with LPKP in Sabah and Sarawak.

Non-compliance can result in inspection failure, penalties, or operational restrictions until compliance is achieved.

Check Your Verifier on JPJ's List

JPJ publishes the companies it recognises to verify speed limiters on its official SLD verifier list. You can filter it by state and vehicle make, and retrofit work has its own list. The company named on your Slip Pengesahan should be on it, so check before you pay.

Activation or Retrofit? How to Check Your Truck

Activation switches on a speed limiting function your truck already has in its ECU. Retrofit fits a new approved SLD to a truck that has none. Activation is usually the quicker and cheaper job, so check which one applies before you accept a quote.

  • Check the manufacture date: commercial vehicles built from 1 January 2015 very likely already have an SLD function, which points to verification or activation rather than retrofit.
  • Check the vehicle documents: manufacturer specifications and service records often show whether a speed limiting function is present, even if it is switched off.
  • Get it inspected: an authorised installer can check the engine management and confirm whether the function can be activated or a retrofit is really needed.
  • Ask before paying for a retrofit: if you are quoted for a full retrofit, ask whether the vehicle could be activated instead.

How SLD Installation Works

  1. Compatibility check: the installer confirms whether the vehicle has an electronically controlled engine (ECU) or a mechanical diesel system, and checks for old devices or wiring faults.
  2. Activation or retrofit: ECU vehicles are usually activated with a diagnostic tool. Older or mechanical vehicles get an external device wired into the throttle or fuel control.
  3. Fitting and wiring (retrofit only): the device is mounted in a protected spot and connected to the speed signal, throttle or fuel control and ignition, with wiring secured and tidy.
  4. Calibration: the system is set so the vehicle cannot go over the 90 km/h cap, then tested.
  5. Sealing and documents: the limiter is sealed against tampering and you receive the SLD verification documents needed for PUSPAKOM and JPJ inspections.

What Affects the Cost

  • Activation or retrofit: the biggest factor. Activation costs less because no new hardware is fitted.
  • Vehicle category: buses, medium lorries and prime movers have different wiring layouts and labour time.
  • Vehicle condition: worn sensors or damaged wiring may need repair before calibration.
  • Custom fitting: modified bodies or non-standard fuel systems take longer.
  • Fleet volume: booking several vehicles together lowers the price per vehicle.

For an accurate quote, bring your vehicle and company documents and any previous SLD slip, and mention any recent engine, ECU or wiring work.

Mistakes That Cause Inspection Failure

  • A broken or missing tamper seal
  • The limiter calibrated to the wrong speed
  • Loose or exposed wiring that looks like tampering
  • A chassis number on the documents that does not match the vehicle
  • ECU or engine work that erased the limiter setting without re-verification
  • Using an installer who is not authorised

After any ECU reflash or major engine work, have the limiter re-verified and re-sealed before the vehicle goes back on the road.

How JPJ Speed Limiters Work

A Speed Limitation Device electronically restricts engine output once the vehicle reaches the prescribed speed threshold. The system:

  • Limits maximum speed without affecting normal driving below the threshold
  • Does not apply braking force
  • Integrates with the vehicle's ECU or speed sensors
  • Is tamper-resistant and inspection-ready
  • Meets the UN R89 international speed limiter standard

When properly installed, the system works passively: it only acts at the speed cap, does not apply the brakes, and leaves normal driving below the cap unchanged.

ESL or FSL: Which Speed Limiter Fits Your Fleet?


The right device depends on how the engine is controlled. Our ESL (Electronic Speed Limiter) works through the ECU, so it suits modern trucks and buses. Our FSL (Fuel-type Speed Limiter) controls fuel flow and suits older fuel-controlled models from makers such as Isuzu, Mitsubishi Fuso and Hino.

Not sure which one your vehicle needs? The compatibility check tells you before you pay for anything.

Our Product Solutions

Speed Limiter

Speed Limiter Devices & Governors

Our Speed Limiter / SLD systems are engineered to prevent overspeeding and improve road discipline across Malaysia’s varied driving environments. Fully compliant with current JPJ SLD regulations, these devices are essential for any commercial vehicle fleet planning to pass JPJ inspections.

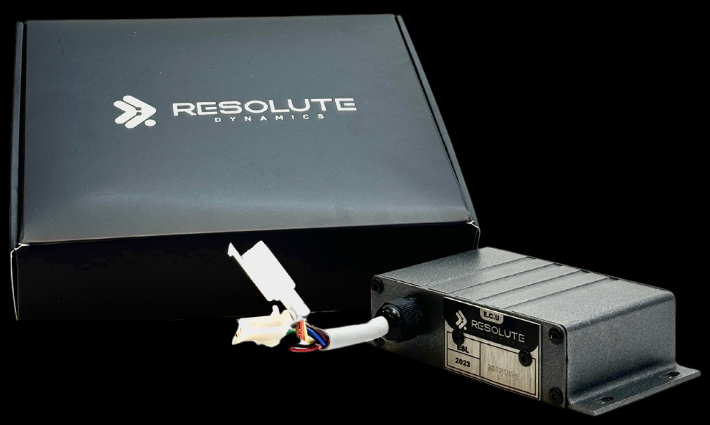

Dual Speed Limiter Multi speed Limiter

Dual Speed Limiter and Multi Speed Limiter

From Penang's narrow city roads to high-speed corridors like the North-South Expressway, one speed doesn’t fit all. Our multi-speed limiter (MSL) systems let you configure limits based on driving zones or road types, giving drivers control while reducing risk.

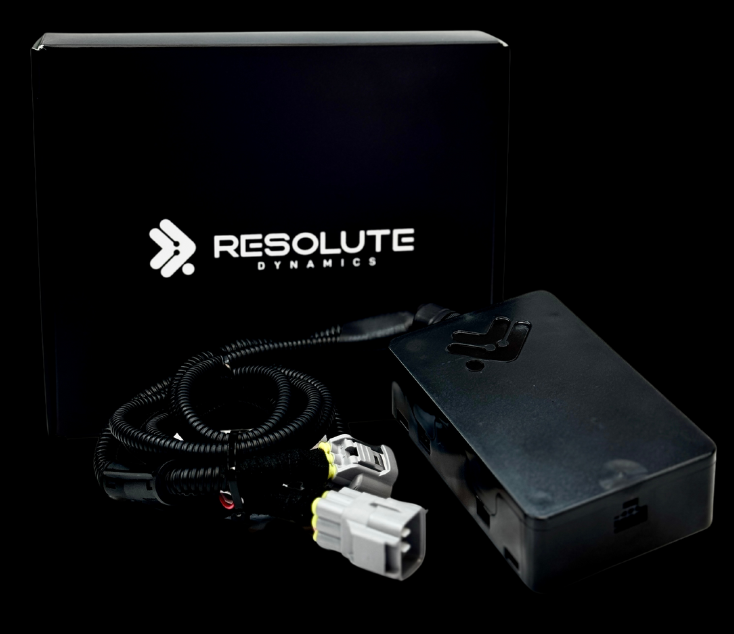

RPM Regulator

RPM Regulator

Too much engine stress means higher costs, more emissions, and shorter vehicle life. Our RPM regulators help you maintain optimal engine performance, especially valuable for fleets operating in traffic-heavy zones like Klang Valley or Johor Bahru.

about

Why Fleets Choose Resolute Dynamics

Fitted at Your Depot

We install at your yard or depot, so your lorries don't lose a day driving to a workshop.

Activation Checked Before Retrofit

We check whether the ECU already has a speed limiting function before quoting a retrofit. Activation costs less, and you only pay for the job your vehicle needs.

Papers Ready for Puspakom

Every vehicle leaves with the Slip Pengesahan Kefungsian SLD and the Laporan Kefungsian SLD that inspectors ask for.

Fleet Pricing From 10 Vehicles

Volume pricing starts at 10 vehicles, and driver training is included at no extra cost.

Used in 20+ Countries

Our limiters are fitted in more than 200,000 vehicles worldwide.


Speed Limiter Device Coverage Across Malaysia

We supply and support JPJ-approved speed limiter devices for fleets nationwide. Choose your area for local pricing, PUSPAKOM-ready installation, and JPJ certification:

Frequently Asked Questions

SLD enforcement is being introduced in phases. Phase 1 (functionality verification) began on 1 October 2025 and Phase 2 (ECU activation) from 1 January 2026. Phase 3 full retrofit enforcement, originally set for 1 July 2026, has been postponed and no new date has been announced. Phase 1 and Phase 2 remain in force, so JPJ can still issue a Notis Siasatan under Section 114 for a missing or non-working device.

JPJ-approved speed limitation devices cap commercial vehicle speed at 90 km/h, with a driver warning typically triggered around 85 km/h.

Resolute Dynamics supplies and coordinates JPJ-approved SLD installation nationwide, including on-site fitment at your yard or depot for fleets. Each installation is certified with the Slip Pengesahan Kefungsian SLD required for PUSPAKOM and JPJ inspections.

The requirement has been introduced to improve road safety by reducing overspeeding incidents involving heavy and passenger-carrying vehicles. It is now part of mandatory vehicle compliance under JPJ regulations.

It depends on the job. Activating a limiter that is already in the ECU is done with a diagnostic tool, so it is the shorter job. A retrofit takes longer because the device has to be mounted, wired, calibrated and sealed. We give you the time for your vehicle after the compatibility check.

Yes. You get the Slip Pengesahan Kefungsian SLD and the Laporan Kefungsian SLD. Keep both in the vehicle: Puspakom and JPJ officers ask for them, and you need them when you apply for or renew an APAD permit.

Not below the cap. The speed limiter only stops the vehicle going above the 90 km/h limit. It does not apply the brakes, and normal driving below that speed is unchanged.

Yes. The verification slip and report are renewed every two years. The limiter also has to be re-verified after any ECU reflash or major engine work, because that work can erase the setting.

For a retrofitted limiter, the verification slip has to come from a company JPJ recognises. A slip from anyone else will not be accepted at inspection, and you end up paying for the job twice.

JPJ publishes its list of recognised SLD verifiers on the official JPJ portal. You can filter it by state and vehicle make, and retrofit work has its own list. Before you pay, check that the company named on your slip is on it.

It depends on whether your vehicle needs ECU activation or a full retrofit device, and on the vehicle type. Send us the vehicle details and we will quote before you book. Limiters fitted in 2026 may qualify for the Accelerated Capital Allowance (capped at RM4,000 per device) until 31 December 2026, so check eligibility with your tax adviser.

Yes. Our SLD devices are designed for retrofit installation on pre-2015 commercial vehicles with electronic engine management, as well as older mechanical-diesel units where an external speed governor is required. A compatibility check confirms which install method applies before quoting.

Our JPJ-approved Speed Limitation Device works with all major commercial vehicle brands used in Malaysia, including Hino, Isuzu, Mitsubishi Fuso, Scania, Volvo, MAN, DAF, Foton, JAC, and UD Trucks. Compatibility covers rigid lorries, prime movers, buses, and vans across GVW classes.

Yes. Fleets of 10 or more vehicles are eligible for tiered volume pricing, on-site installation, included operator training, a dedicated fleet account manager, and consolidated compliance documentation. Contact our team for a formal fleet quote within 24 hours.
